Herds of Architecture III
Automation of Axonometric Drawings without 3D ModelsGeorgia Institute of Technology
2022
This project ‘Herds of Architecture III’ is aiming to resolving a challenge: Is it possible to automate an axometric drawings directly from a 2D plan in Shape Machine? Note that the process should be completely in 2D environment. The objective of this project is to revisit an important mechnical drawing technic, axonometric drawing, where the drawing process is implemented in a sequence of visual instructions. In theory, the process can be automatically excuated in shape rules. As a note, the project is still on going, and the final results are forthcoming and will be updated in March 2022 (expected).
Demo Videos on Youtube:
Automating Axonometric Drawing I
Automating Axonometric Drawing II
Automating Axonometric Drawing III
Demo Videos on Youtube:
Automating Axonometric Drawing I
Automating Axonometric Drawing II
Automating Axonometric Drawing III

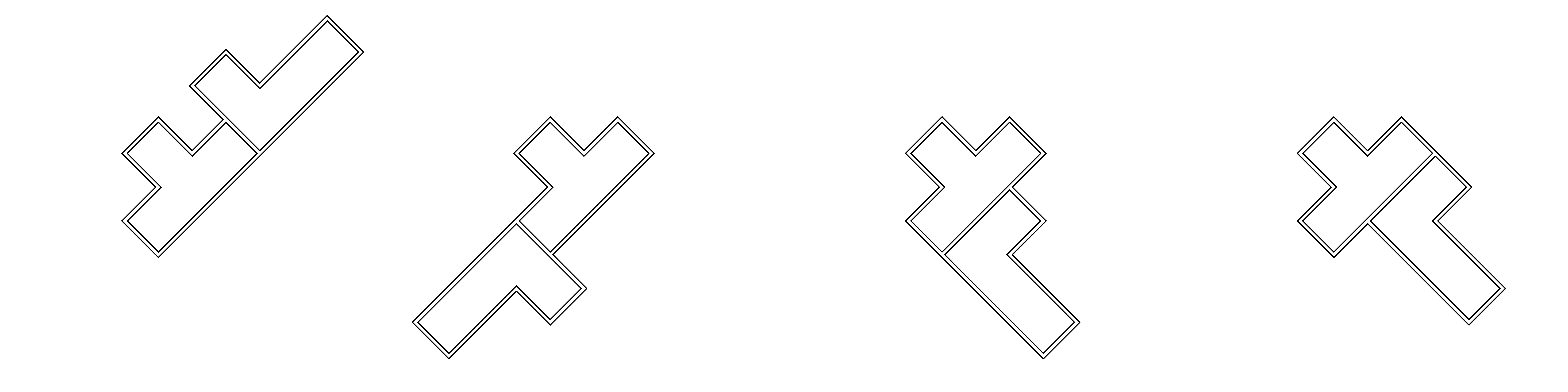

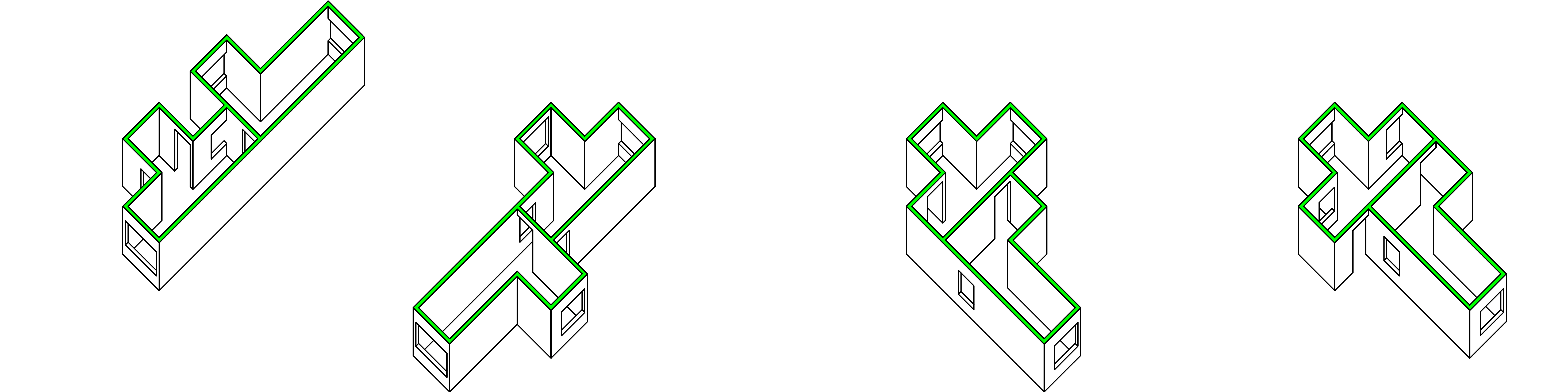

Herd 1 ( T + L ):
Herd 2 ( T + l ):
Herd 3 ( T + Z ):
Herd 4 ( T + □ ):
Herd 5 ( L + l ) :
Herd 6 ( L + Z ):
Herd 7 ( L + □ ):
Herd 8 ( Z + l ):
Herd 9 ( Z + □ ):
Herd 10 ( □ + l ):
Automatic Workflow:
